Quick answer: A fixed commercial awning for a Hauppauge restaurant outdoor dining area starts around $3,800 and runs to $12,000 or more depending on span, material, and post configuration. Suffolk County requires a building permit. The fabric spec and wind load rating matter more than the color.
Restaurant project on Motor Parkway in Hauppauge, two years ago. Owner wanted an outdoor dining awning, wanted it done in six weeks, had a specific color in mind. The color was easy. What took three weeks of back-and-forth was the wind load calculation for a free-standing post system on a site with no windbreak to the west. Long Island is not a gentle climate for commercial structures. Here’s what you actually need to know before spec-ing an outdoor dining awning in Hauppauge.
What Wind Load Rating Means for a Restaurant Awning
Suffolk County follows the New York State Building Code, which references ASCE 7 for wind load design. For commercial structures in Hauppauge, the basic wind speed used in design is 115 mph (Exposure Category B, suburban terrain). That’s not the sustained wind speed you’ll ever see on a normal day. It’s the design threshold the structure must survive without failure. An awning rated for that load uses heavier extrusions, deeper post footings, and more attachment points than a residential-grade product.
The rating also covers lateral load (wind pushing sideways against the awning face) and uplift (wind trying to pull the structure up). A flat-pitch awning in a west-facing exposure with no building return catches both. An awning with a 15-degree pitch and returns on three sides handles both significantly better. Geometry is a load-reduction tool, not just aesthetics.
Fabric Weight and Water Resistance: The Numbers That Matter

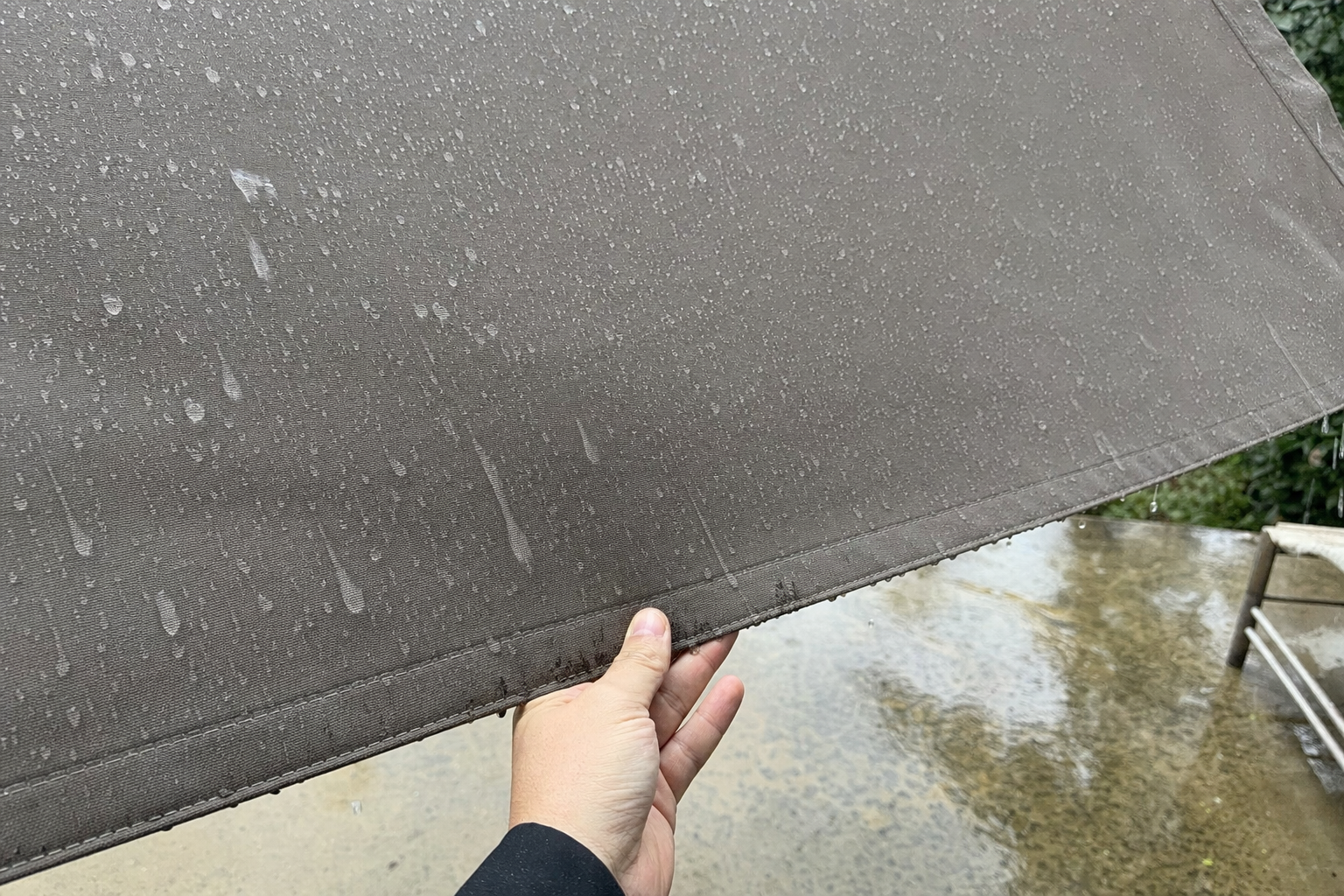

Commercial awning fabric for outdoor dining comes in two primary categories: solution-dyed acrylic (Sunbrella is the dominant brand) and vinyl-coated polyester. The key specs are fabric weight (ounces per square yard) and hydrostatic resistance (how much water pressure the fabric withstands before passing through).
For outdoor dining in Suffolk County weather, the minimum spec is 9 oz solution-dyed acrylic with a hydrostatic resistance of 90 cm or higher. That’s the threshold where the fabric sheds a standard rainstorm without passing water through the weave when tensioned properly. Drop below 8 oz and you get drips in a heavy rain. Vinyl-coated polyester at 18 oz or higher is a stronger waterproof option but doesn’t breathe, which creates condensation issues under the canopy in summer. The choice between them depends on your primary use case: sun shade with occasional rain coverage, or a near-weatherproof enclosure.
Fixed Canopy vs Retractable: Two Different Jobs
A fixed commercial awning frame is welded aluminum or steel, bolted to the building or to freestanding posts, with a static pitch and stationary fabric cover. It’s up year-round or removed seasonally as a full unit. Built to the wind load spec above. Costs more upfront, lasts longer, and doesn’t require staff to operate.
A retractable awning system has a motorized or manual cassette that extends and retracts the fabric over the dining area. It’s the right choice when you want full sun for part of the day and coverage for the rest, or when the site has variable wind conditions where a fixed awning would need to be rated for worst-case but only occasionally sees it. Retractable systems have wind sensor options that auto-retract above a set mph threshold. The trade-off: more components, more maintenance, and a lower maximum span before you need intermediate support.
Wall-Mount vs Post-Mount: Your Building Determines Which
Wall-mounted commercial awnings attach to the building facade at header brackets and extend out over the dining area. They work well when the building wall has adequate substrate to accept the lag bolt load, when the dining area is directly adjacent to the building, and when the overhang needed is 12 feet or less. Beyond 12 feet, the moment arm at the wall bracket gets expensive to engineer properly.
Post-mounted systems use freestanding columns set in concrete footings, supporting the awning frame independently of the building. Required when the dining area is detached from the building, when the span exceeds 12 feet, or when the building wall can’t take the load. Post footings in Hauppauge must be designed for the frost depth (minimum 36 inches in Suffolk County) and the wind load. This adds $800 to $2,000 per post to the project, but it’s non-negotiable for a permanent outdoor dining structure.
Suffolk County Health Code: What the Inspector Looks At
The Suffolk County Department of Health Services requires that outdoor dining areas covered by a fixed structure be treated similarly to an interior dining area for food safety compliance. That means the canopy must provide protection from insects, birds, and weather. An awning with open sides qualifies as long as the roof coverage is adequate. A structure with three or more enclosed sides may trigger a full kitchen ventilation review, which is a different conversation.
The building permit from the Town of Smithtown (for most Hauppauge addresses) is required for any permanent awning structure. The submission typically requires architectural drawings, the structural calculations, and a site plan showing the awning footprint relative to property lines and parking. Plan 6 to 12 weeks for permit approval on a commercial outdoor dining structure.
What a Commercial Outdoor Dining Awning Costs in Hauppauge
| System type | Span | Approx installed cost | Permit required |
|---|---|---|---|
| Fixed wall-mount, canvas fabric | 8 to 12 ft | $3,800 to $7,500 | Yes, Town of Smithtown |
| Fixed post-mount, canvas fabric | 12 to 20 ft | $7,500 to $14,000 | Yes, structural drawings |
| Motorized retractable, single cassette | 8 to 14 ft | $6,000 to $11,000 | Yes |
| Large-span fixed, vinyl-coated fabric | 20 to 30 ft | $14,000 to $25,000 | Yes, PE stamp required |
- Post footings: add $800 to $2,000 per post for concrete footing at Suffolk County frost depth
- Wind sensors for retractable systems: add $400 to $800
- Fabric upgrade to vinyl-coated polyester: add $600 to $1,500 over standard acrylic
- Permit expediting: add $400 to $900 for faster Town of Smithtown review
- Seasonal removal and reinstallation service: $600 to $1,200 per year
Restaurants that are also evaluating vestibule enclosures for Long Island restaurants for winter service, or comparing awnings against retractable patio screens in Hauppauge for insect and privacy control, will find those cover different use cases than a primary outdoor dining awning. M&M Sign & Awning has been fabricating and installing commercial awnings across Hauppauge and Suffolk County since 1976. Reach out through mmawning.com to talk through the right configuration for your site.
The wind load spec is not optional. The building permit is not optional. The right fabric weight for Suffolk County weather is not a cosmetic choice. Get those three things right and an outdoor dining awning in Hauppauge pays back inside one good season.
